Detached house in Soria: a home built to Passivhaus criteria in a historic village centre

Design of a 240 m² detached house in the historic centre of Retortillo de Soria. The new house moves away from the old building to reach the sun and the garden, breaks its roof into a saw-tooth profile to capture light and achieves an A energy rating with a heating demand of just 6.3 kWh/m² per year.

Nueva vivienda abierta al jardín en Retortillo de Soria

The new house, opening onto the garden and facing the sun.

240 m²

Area
A home for a couple and their two children.

A

Energy rating
Meets the parameters of the Passivhaus standard.

6.3

kWh/m²·year
Primary energy demand for heating.

2

Levels
Resolving the difference in height between street and garden.

The brief

An old house on the worst spot of the plot

The plot, in the historic centre of Retortillo de Soria, contained an old three-storey house with thick stone walls and timber floors and roof, in an advanced state of decay. It also occupied the least favourable spot on the plot: squeezed between buildings that blocked the sun, with little connection to the garden and no views.

The goals were clear: a home for a couple and their two children, with private, bright secondary bedrooms; placing the house on the best spot of the plot; resolving the level difference between street and garden to improve access; and achieving very high energy efficiency, using the Passivhaus standard as a benchmark.

Project data

  • Location: Retortillo de Soria (Soria)

  • Client: private

  • Years: 2021–2022

  • Area: 240 m²

  • Brief: 3 bedrooms, 2 bathrooms and parking

  • Energy rating: A

  • Architects: Pau Martínez and Sergio Sanz, Kaitek

Siting

Moving away from the old to reach the sun

The new house occupies the sunniest spot of the plot.

The new home stands apart from the old building and moves to the sunniest part of the plot. Between the two, a courtyard allows the lower rooms to avoid opening onto the narrow street, protecting their privacy. This courtyard, with a large wall that catches the southern light, is well lit even though it sits below the level of the garden.

The brief is organised on two levels: a main part at garden level with views, and a secondary part accessed from the street, with the children’s bedrooms.

Interiors

Wood, light and neutral surfaces

The saw-tooth roof brings the sun deep into the house.

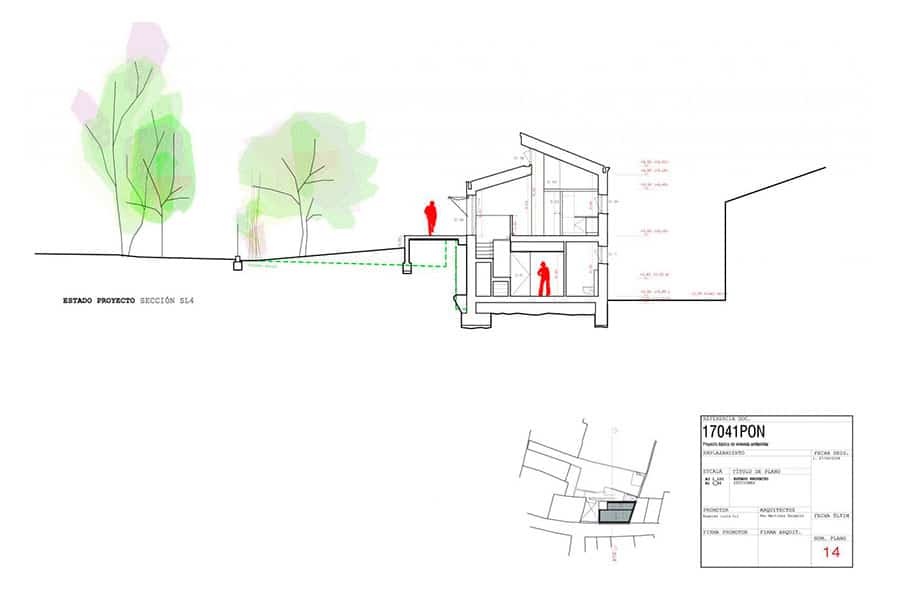

In section, the roof breaks into a saw-tooth profile so that sunlight reaches the deepest parts of the house directly. The roof structure is timber, traditional in the area, and three-layer timber panels give the interior light a warm quality. The walls are solid brick, the floors beige porcelain tile, the walls white-painted plaster and the high-performance windows black.

Energy efficiency

Passivhaus criteria for a village house

Very low energy demand and a healthy indoor environment.

Thick insulation

A highly insulated envelope keeps heat loss to a minimum in a cold climate.

Solar gain

Orientation to the sun and a saw-tooth roof to make the most of winter sunshine.

Airtightness

Rigorous control of air leakage, a key part of the Passivhaus standard.

Balanced ventilation

Continuous ventilation with heat recovery.

Efficient windows

High-performance windows that insulate and capture the sun.

6.3 kWh/m²·year

Primary energy demand for heating, below any high-efficiency standard.

Frequently asked questions

Very low-energy houses

A very low-energy building standard based on thick insulation, the elimination of thermal bridges, high airtightness, high-performance windows and heat-recovery ventilation.

It depends on the condition of the building, its value and its position on the plot. Here the old house was badly deteriorated and on the worst spot of the plot, so the new home was placed where it gets most sun.

Yes, by respecting planning rules and the traditional materials of the area. In this house the roof is timber and the walls are solid brick.

That the house needs very little energy to stay warm: a fraction of what a conventional home uses in the same climate.
